Harmonic Filter

Quality Power for Reliable Business



Three Phase 25-300A

                                  MAIN FUNCTION

      Mitigate harmonics

     Improve power factor

extending electrical equipment's lifetime



OUR ADVANTANGES

Quality

We have been developing and producing transformers in accordance with IEC and EN standards for over 40 years. Our transformers are subject to 100% testing and experience quality from a single source at all stages of production. This makes us a reliable partner with the highest quality standards.

Flexible

Our customers’ application areas are extremely varied, which is why we provide transformers in a wide range of designs. We provide expert advice on the use of standard transformers or customer-specific configurations. Whether for serial production or specific applications, we deliver transformers that are perfect for any customer requirement, irrespective of the quantity required.

Reliable

Sometimes a quick solution is needed, e.g. with a system outage or for changes at short notice. At times like these, it helps to have a wide standard range available from the warehouse. Our Development Center and production facility at our headquarters give us the flexibility we need to act on customer projects in order to ensure comprehensive planning.

FEATURES & BENEFITS

Voltage ratings from 208 to 690 vac

25 to 300 amp ratings

Dynamically cancels 3rd to 50th orders harmonics

Graphics display and analyzer

Individual or parallel systems for added capacity

Immediately improves electrical system efficiency

Reduces operations and maintenance costs

Quick and easy installation with virtually no downtime

No need for complex site analysis

ENQUIRE NOW

APPLICATIONS

Alternate Text
Data Center
Alternate Text
Industrial
Alternate Text
Commercial
Alternate Text
Healthcare
Alternate Text
Power
Alternate Text
Education
Alternate Text
Leisure



TECHNICAL SPECIFICATIONS

Models
ModularRack 30A 50A 75A 100A 150A
Dimensions 680x200x530(WxHxD)mm

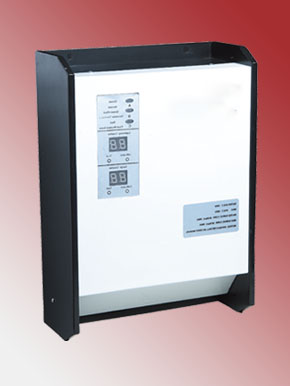

Wall Mout 30A 50A 75A 100A 150A
Dimensions 730x208x576(WxHxD)mm

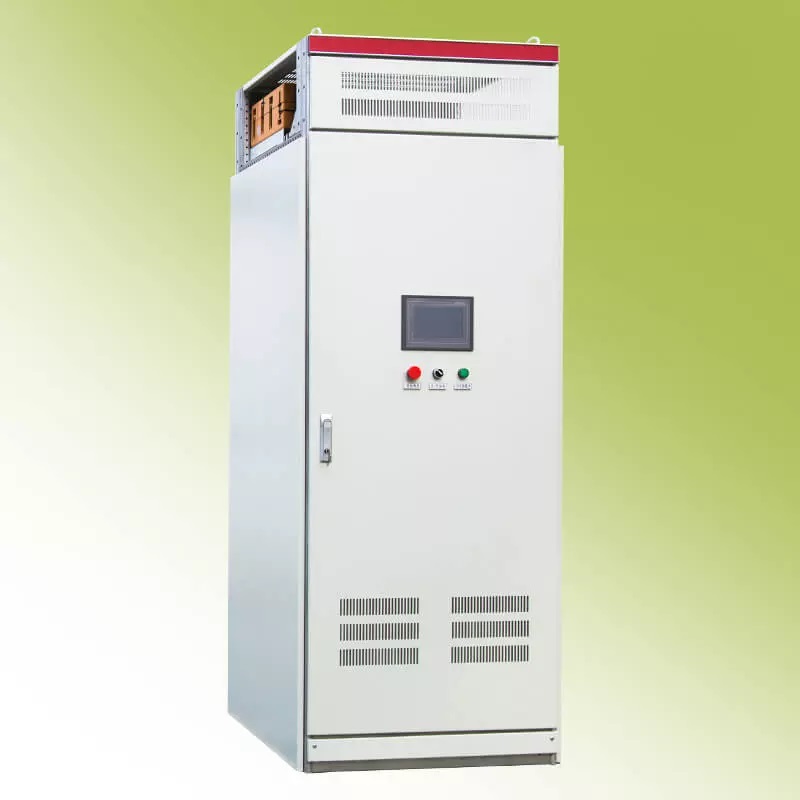

Standalone 100A 150A 300A
Dimensions 80ox800x2200(WxHxD)mm
ParallelNumber 6
lnput
Working voltage 400V/690V(-20%~+15%)
Frequency 50Hz/60Hz(-10%~+10%)
Current Transformer 100:5~10000:5
Function
Harmonic Compensation 2nd-50th orders
Harmonic Filtering Rate >97%
Reactive Power
Compensation
-1~+1 adjustable
Three Phase Unbalance
Compensation
100% unbalance Compensation
Communication
Communication Mode RS232,485,Modbus Port,TCP/P optional
Communication lnterface RS485
Tech lndex
Response Time <10ms
Active Power Loss <2.5%
Heat Dissipation Method lntelligent air cooling
Noise <60dB
Protection Function Overvoltage, undervoltage, overcurrent.overheating.
short circuit protectionand so on over 20 protections
Mechanics
Weight 25kg(<=75A/50kvar)    25kg (<=75A/50kvar)
Color Fine orange stripes,RAL 7035
Environmernt
Working Temperature -10'Cto+45"C
Altitude <1500 meters (100 meters per increase capacity decreased by 1%)
Relative Humidity <99%
Protection Level IP20(higher protection level can be customized)
