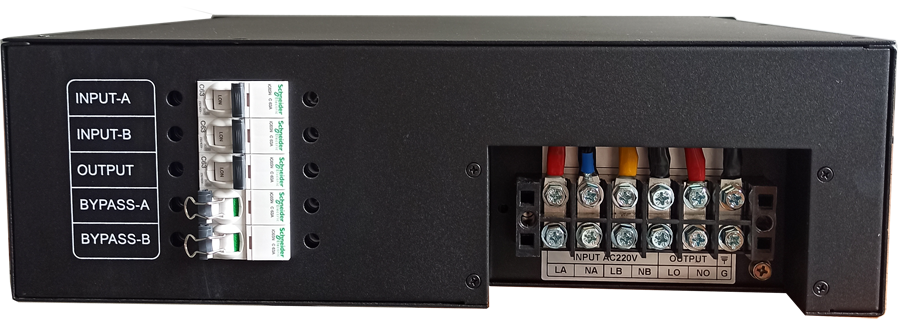

FREQUENCY CONVERTER

Quality Power for Reliable Business



Single and Three Phase 0.5-1000KVA

                                   Frequency, Voltage, Phase Conversion

• Frequency Conversion:

Input frequency is 50/60Hz, output frequency is 40-499.99Hz adjustable.

• Voltage Conversion:

 Input voltage 220/380V or 230/400V, output voltage is 0-300V/0-520V adjustable.

• Phase Conversion:

Three phase input, single phase output; Single phase input, three phase output.

OUR ADVANTANGES

Quality

We have been developing and producing transformers in accordance with IEC and EN standards for over 40 years. Our transformers are subject to 100% testing and experience quality from a single source at all stages of production. This makes us a reliable partner with the highest quality standards.

Flexible

Our customers’ application areas are extremely varied, which is why we provide transformers in a wide range of designs. We provide expert advice on the use of standard transformers or customer-specific configurations. Whether for serial production or specific applications, we deliver transformers that are perfect for any customer requirement, irrespective of the quantity required.

Reliable

Sometimes a quick solution is needed, e.g. with a system outage or for changes at short notice. At times like these, it helps to have a wide standard range available from the warehouse. Our Development Center and production facility at our headquarters give us the flexibility we need to act on customer projects in order to ensure comprehensive planning.

FEATURES & BENEFITS

Programmable Key Lock Setting Output Frequency.

Easy-to-read LED display Output Voltage Frequency, Ampere,Wattage & Power Factor.

Pure and Stable Sine Wave Output.

Self Test at Power On.

Galvanic isolation. No Harmonic Distortion. (EMI, EMC).

PWM Technology enhances Compact Size, Light Weight.

IGBT Module generates High Efficiency, Low Noise & Max. Reliability.

Capable to simulate the AC Voltage & Frequency used in all countries .

Sustained 300% Overload Capability.

Electronic Circuit / Instant Trip Breaker / Alarm for Over Load, Over Temperature, Instant Cut off, Short Circuit Protection.

Suitable for Resistive, Capacitive, Inductive and Non-linear Load.

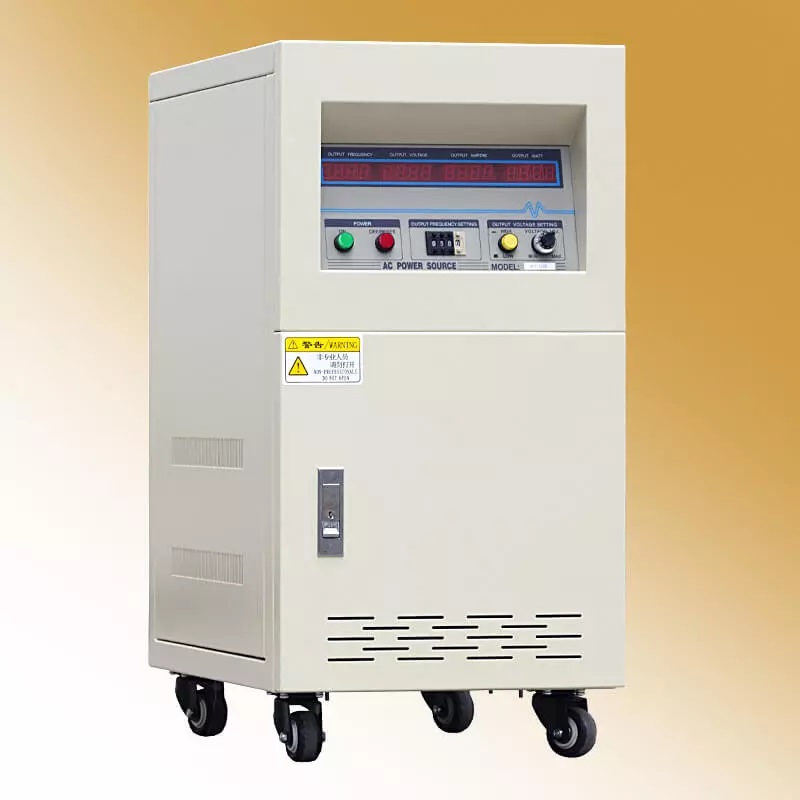

DIGITAL DISPLAY PANEL

ENQUIRE NOW

APPLICATIONS

Alternate Text
Avionics
Alternate Text
Military
Alternate Text
Telecom
Alternate Text
Manufacturing Testing
Alternate Text
Commercial
Alternate Text
Marine
Alternate Text
Research & Design



TECHNICAL SPECIFICATIONS

PHASE SINGLE THREE
MODEL 0.5KVA-45KVA 3KVA-150KVA
TYPE IGBT/Pulse Width Modulation Type
INPUT

VOLTAGE

(Select One)

1Phase 2Wire:110V(2 to 5KVA)/220V/230V/240V ±10%
3Phase 4Wire:Wye Type 190/110;200/115;208/120;220/128;230/132;240/ 139V ±10%
3Phase 4Wire:Wye Type 380/220;400/230;415/240;440/254;460/265;480/ 277V ±10%
3Phase 3Wire:Delta Type 220;230;240;380;400;415;440V ±10%

FREQUENCY

(Select One)

47 - 63Hz or 400Hz ±5%
OUTPUT VOLTAGE 110V Setting(Low Range): 0-150V (Option:0-600V)
220V Setting(High Range): 0-300V
VOLTAGE REGULATION ±1%
FREQUENCY 40.0 Hz to 499.9 Hz(Programmable)
FREQUENCY STABILITY ±0.01%
DISTORTION(THD) Pure Sine Wave,±2%
FREQUENCY METER 4 LED Digital display. Res.0.1Hz/Step
VOLTMETER 4 LED Digital display. Res.0.1V
AMMETER 4 LED Digital display. Res.0.1A
WATTMETER 4 LED Digital display. Res.0.1W
PROTECTION Electronic Circuit/Circuit Breaker for Overload,Over Temperature,Instant Cut off.Short Circuit

WORKING

ENVIRONMENT

AMB.TEMP. 0-40 deg.C
HUMIDITY 0-90%(Non-condensing)



1-Phase Specifications

MODEL&CAPACITY 500VA 1KVA 2KVA 3KVA 5KVA 8KVA
TYPE IGBT/Pluse Width Modulation Type
CURRENT LIMIT L-Nat L:4.2A L:8.4A L:16.8A L:25.0A L:41.6A L:63.0A
L-Nat H:2.1A H:4.2A H:8.4A H:12.5A H:20.8A H:31.5A
WEIGHT (Kgs) 17 21 45 60 70 80
(Lbs) 37.4 46.2 99 132 154 176
DIMENSION (WxDxH) (mm) 365x370x138 350x530x675
(inch) 14.6x14.8x5.5 14x21.2x27
MODEL&CAPACITY 10KVA 15KVA 20KVA 30KVA 45KVA
TYPE IGBT/Pluse Width Modulation Type
CURRENT LIMIT L-Nat L:83.2A L:125.0A L:166.4A L:250A L:375A
L-Nat H:41.6A H:62.5A H:83.2A H:125A H:188A
WEIGHT (Kgs) 120 130 150 200 265
(Lbs) 264 286 330 440 583

DIMENSION

(WxDxH)

(mm) 350x650x855 450x630x1000
(inch) 14x26x34.2 18x25.5x40

3-Phase input 1-Phase output Specifications

MODEL&CAPACITY 10KVA 15KVA 20KVA 25KVA 30KVA
TYPE IGBT/Pluse Width Modulation Type
CURRENT LIMIT L-Nat L:83.3A L:125.0A L:166.6A L:208.3A L:250A
L-Nat H:41.6A H:62.5A H:83.3A H:104.1A H:125A
WEIGHT (Kgs) 120 130 150 175 200
(Lbs) 264 286 330 385 440

DIMENSION

(WxDxH)

(mm) 350x630x855 500x780x1000
(inch) 14x26x34.2 20x31.2x40
MODEL&CAPACITY 45KVA 50KVA 60KVA 75KVA 90KVA 100KVA
TYPE IGBT/Pluse Width Modulation Type
CURRENT LIMIT L-Nat L:375A L:416.6A L:500A L:625A L:750A L:833.3A
L-Nat H:187.5A H:208.3A H:250A H:312.5A H:375A H:416.6A
WEIGHT (Kgs) 265 130 350 410 485 545
(Lbs) 583 286 770 902 1067 1199

DIMENSION

(WxDxH)

(mm) 750x1000x1200 850x1100x1350
(inch) 30x40x48.5 34x44x54.5



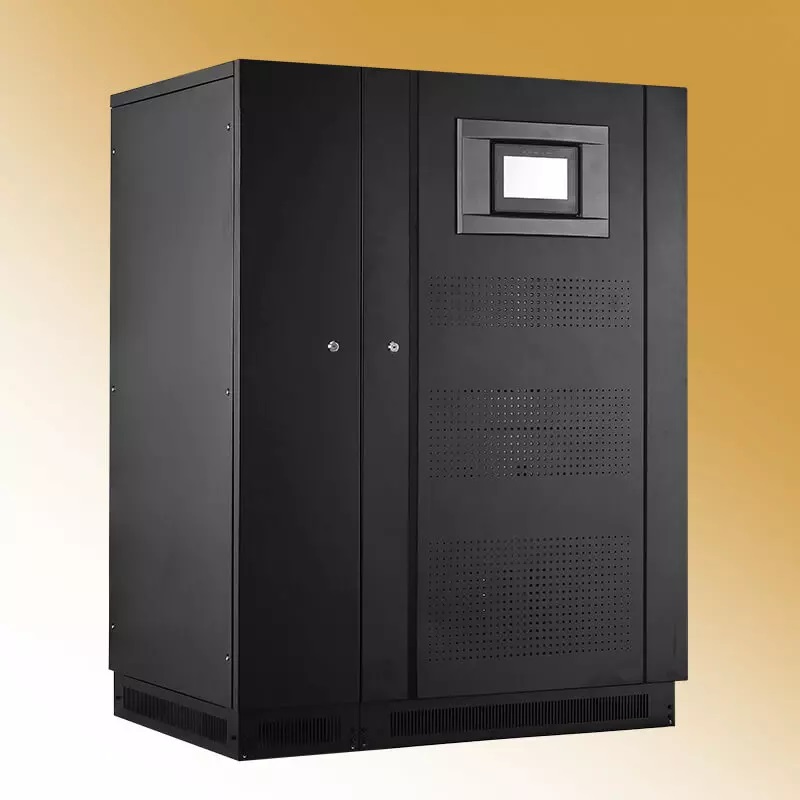

3-Phase Specifications

MODEL&CAPACITY 3KVA 6KVA 10KVA 15KVA 20KVA 30KVA
TYPE IGBT/Pluse Width Modulation Type
CURRENT LIMIT L-Nat L:8.4A L:16.8A L:27.6A L:41.6A L:55.6A L:83.2A
L-Nat H:4.2A H:8.4A H:13.8A H:20.8A H:27.8A H:41.6A
WEIGHT (Kgs) 100 135 195 210 240 360
(Lbs) 220 297 429 462 528 792

DIMENSION

(WxDxH)

(mm) 700x480x1370 800x550x1650
(inch) 28x19.2x54.8 31.5x22x66
MODEL&CAPACITY 45KVA 60KVA 75KVA 100KVA 120KVA 150KVA
TYPE IGBT/Pluse Width Modulation Type
CURRENT LIMIT L-Nat L:125.0A L:166.4A L:208.4A L:277.6A L:333.4A L:418A
L-Nat H:62.5A H:83.2A H:104.2A H:138.8A H:166.7A H:209A
WEIGHT (Kgs) 390 450 525 720 960 1080
(Lbs) 858 990 1155 1584 2112 2376

DIMENSION

(WxDxH)

(mm) 800x550x1650 1000x800x1800 1200x800x1850
(inch) 31.5x22x66 40x31.5x72 48x31.5x78
