We Manage Voltage to Protect Your Business

Independent voltage regulation with maintenance free roller carbon brush for Automatic Voltage Stabilization System

OVER 40 YEARS OF EXPERIENCE

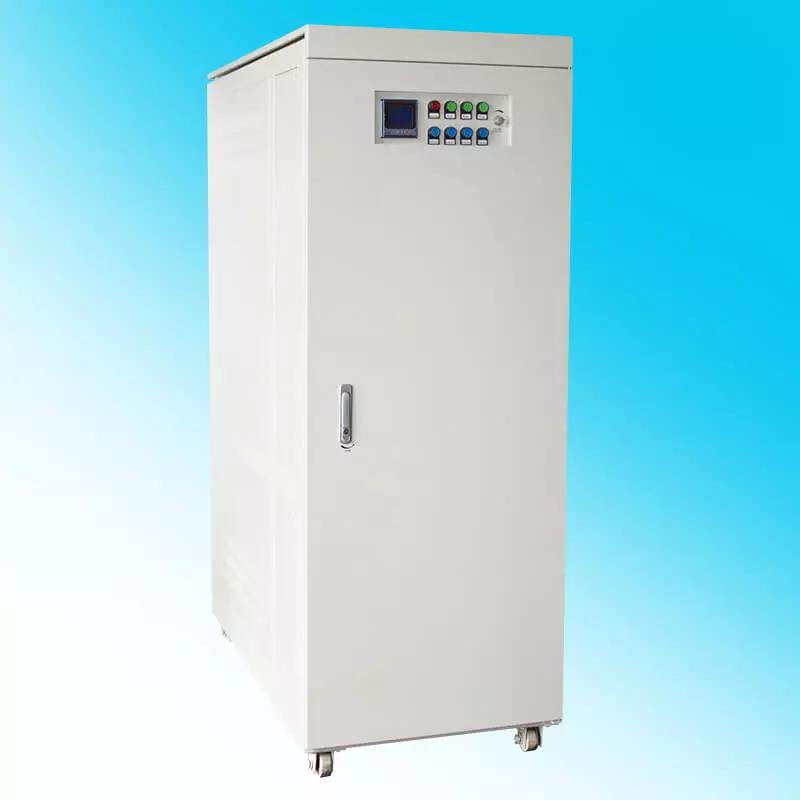

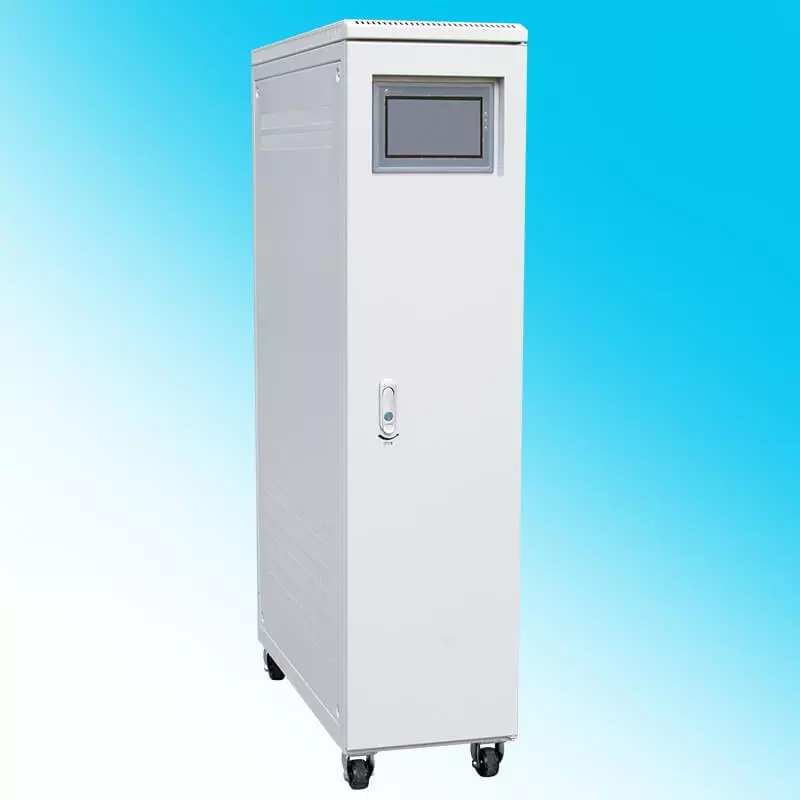

AUTOMATIC VOLTAGE STABILIZER

Better Power Quality,More Energy Saving







Single phase: 1-100KVA

Three phase: 10-6000KVA

ENQUIRE NOW

FEATURES & BENEFITS

Roller(Type) Carbon Brush

Wide Input Voltage Range

Multi-Protection Function

Digital Control Board

BEAUTIFUL INSIDE AND OUT

Beautiful and slim exterior with advanced industrial workmanship Compact interior structure compliance with international standard

PATENT ROLLER CARBON

BRUSH STRUCTURE

Patent three phase individual voltage regulator, whichrealizing the whole unit 2/3 smaller than traditional one.

HIGH PERFORMANCE CONTROL

Central control module based on DSP,realize high-speed and high-performance control

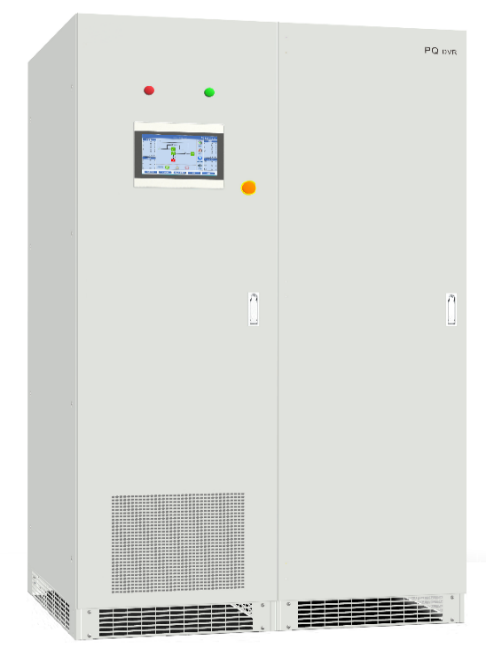

TOUCH SCREEN HMI

                                                      Man-machine interface enable users to know the unit condition clearly



COMPLETE PROTECTIONS

Fully considering the function needs under various operating conditions for both loads and unit itself

INTELLIGENT VENTILATION CONTROL

Optimized design for ventilation. advanced technology and small size Activate the fans when needed for prolong the life of fans.

REMOTE CONTROL

Install special background monitoring software in computer terminal can realize the remote operation and control

ENQUIRE NOW

APPLICATIONS

Alternate Text
TELECOM
Alternate Text
COMMERCIAL
Alternate Text
MEDICAL
Alternate Text
INDUSTRIAL
Alternate Text
BROADCAST
Alternate Text
POWER
Alternate Text
TRANSPORTATION



Technical Specificationas

lnput
Input voltage 220/380V,230/400V,2401415V system, other voltage system can be customized
Input Range ±20%(±15%~土50% can be customized)
lnput Frequency 50/60Hz
Output
Output Voltage 220/380,230/400V,240/415V system, other voltage system can be customized
Output Accuracy Selectable: +1%to ±5%,Factory preset:±2%
Waveform Distortion Nil
PowerFactor 0.8~1
Efficiency ≥98%(full load)
General
Working Principle Servo motor, microprocessor controlled, full automatic
lnsulation Class of Transformer H class
Method of Voltage Regulation Three phase independent regulation
lndicators Voltage, Current,Power,Parameters setting,Failure information
Cooling Natural/forced air
Protection Level IP21(indoor),lP54(outdoor)
Electrical Safety CE equivalent
Environmental
Working Temperature -20 RCto+50°c
Altitude <1000m
Relative Humidity <90%
Noise <55dB
Functions
Normal Functions

Malfunction protection, Short-circuit protection,Lack of phase protection,

Wrong sequence protection, Over voltage / Under voltage protection, Overload protection,Safe start,Manual bypass, Indicating alarms, Security password,RS232/485 interface

Optional Functions lsolation transformer, Surge protector (SPD),GPRS or Wifi communication,Auto byp ass,Centralized monitoring, Touch screen HMl , App control
Dimensions
Model Dimension
(w×D*H)mm
Model Dimension
(W*D*H)mm
Model Dimension
(W×D×H)mm
DBW-10KVA 280×700×1270 DBW-20KVA 280×700×1270 DBW-30KVA 280×700×1270
DBW-5oKVA 280×700×1270 DBW-8oKVA 280×700×1270 DBW-10OKVA 280×700×1270
SBW-15KVA 280×700×1270 SBW-180KVA 320×850×1470 sBW-8o0KVA 600×1300×2000
SBW-20KVA 280×700×1270 sBW-200KVA 400×1000×1670 SBW-1000KVA 800×1800×1900
sBW-30KVA 280×700×1270 SBw-250KVA 400×1000×1670 SBW-1200KVA 1000×1800×1900
sBW-5oKVA 280×700×1270 sBW-300KVA 400×1000×1670 SBW-1500KVA 1000×1800×1900
SBW-80KVA 280×700×1270 SBW-350KVA 500×1150×1870 sBw-2000KVA 1000×1800×1900 2-Case
SBW-100KVA 320×850×1470 sBW-400KVA 500×1150×1870 sBW-3o0oKVA 1000×1800×1900 2-Case
sBW-120KVA 320×850×1470 SBW-500KVA 600×1300×2000 SBW-4000KVA 1000×1800×1900 3-Case
SBW-150KVA 320×850×1470 SBW-60OKVA 600×1300×2000 SBW-5000KVA 1000×1800×1900 4-Case

ENQUIRE NOW

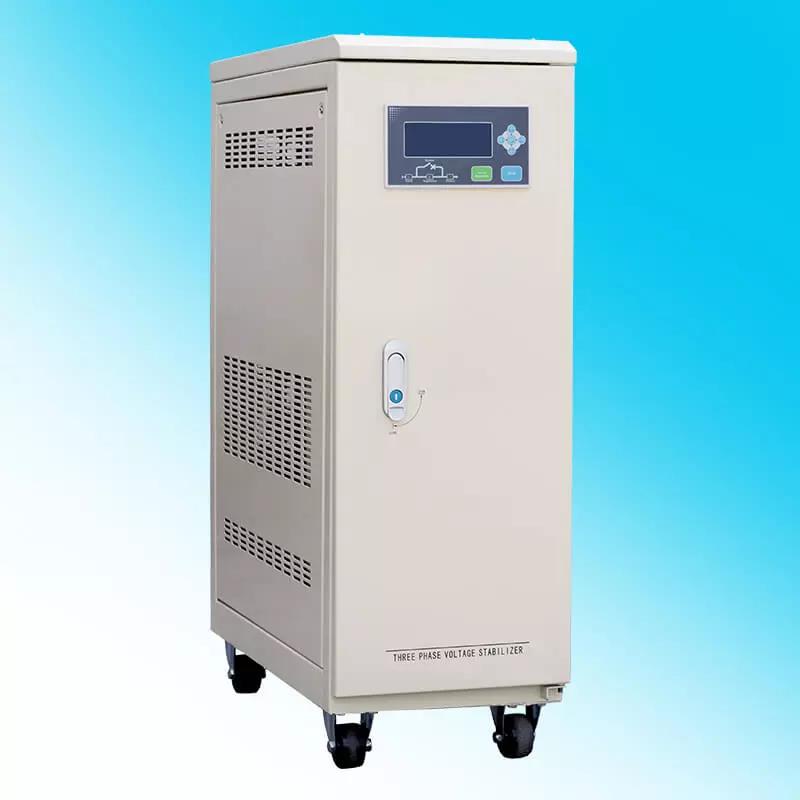

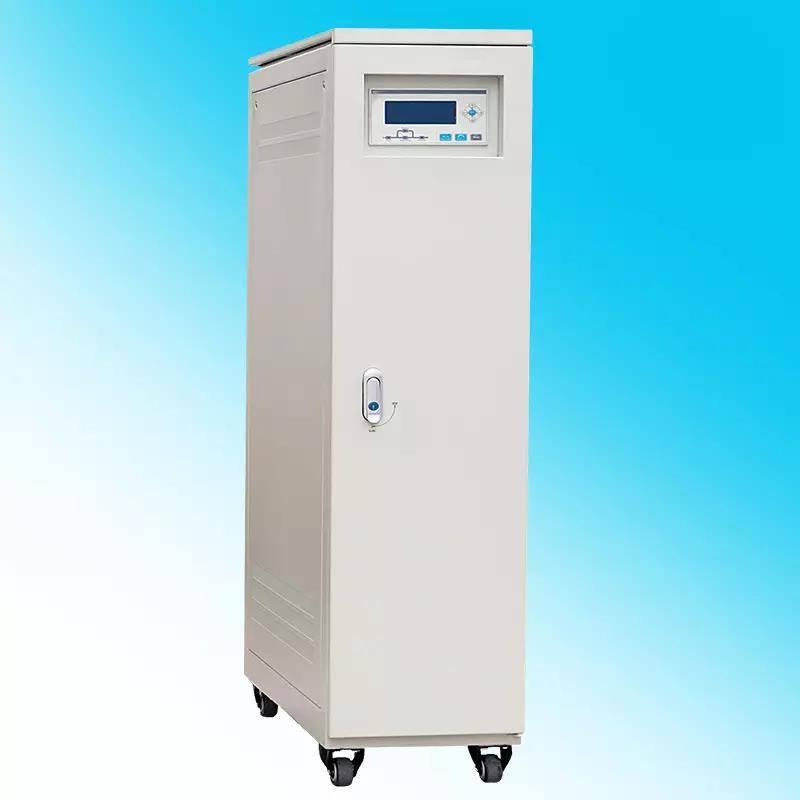

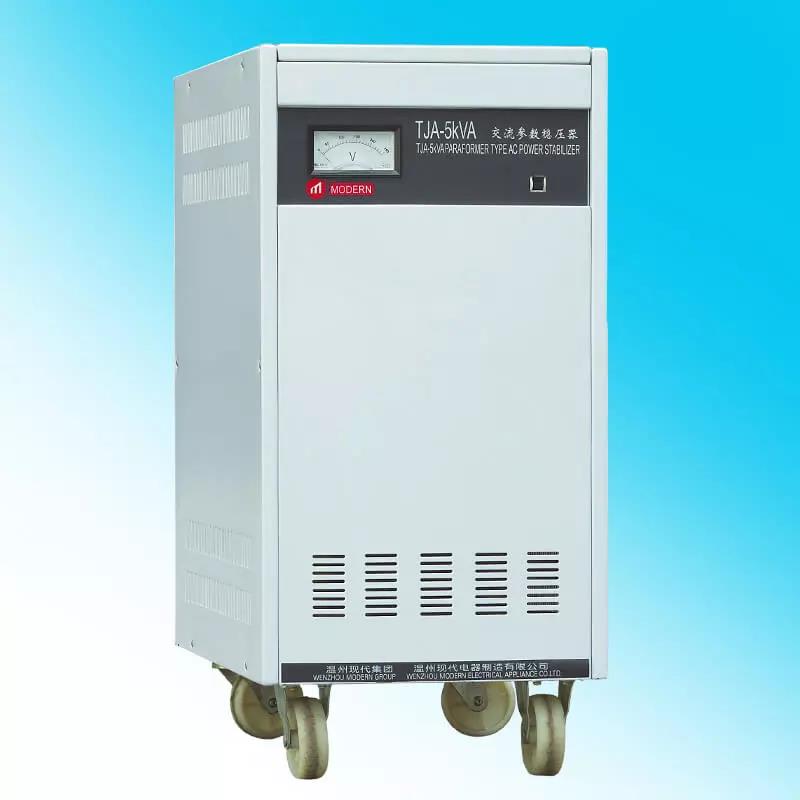

TYEPS OF AC POWER CONDITIONERS
