We Manage Voltage to Protect Your Business

Independent voltage regulation with maintenance free roller carbon brush for Automatic Voltage Stabilization System

150KVA Dynamic Voltage Regulator(DVR)

Phase:
Single/Three phase
Input voltage:
220/380V, 230/400V ±20% or customized
Output voltage:
220/380V, 230/400V ±1-5%
Frequency:
50/60Hz
Power factor:
0.8-1
Type of technology:
Servo type with roller carbon brush
Type of regulation:
Independent voltage control
Display:
LED/Touch Screen HMI
Installation:
Indoor/Outdoor

150KVA Dynamic Voltage Regulator(DVR)


When the power line undergoes a voltage sag or surge, this may cause a critical security threat in power supplying for an enterprise. More seriously, it may cause significant property loss and personal loss. Use of a DVR alleviates such a threat or even avoids related loss.


A DVR is a cutting-edge power electronic device. It employs both advanced power electronic semiconductor technologies and control technologies to ensure safe use of electricity. To ensure stable power supplying to sensitive devices at the backend, our DVR uses world-leading control chips such as DSP/FPGA/CPLD to monitor line voltage quality. When a voltage sag or surge is detected, our DVR can instantly switch related backend devices to be powered by an inverter. The manipulation and shutdown of our DVR is controlled by software, and its typical switching cycle may be limited to no more than 1ms, making sure that the power supplied to the devices will not be interrupted. You can select supercapacitors or lithium batteries as backup power sources to meet your own requirements. The duration for backup power supplying depends on the capacity of those supercapacitors or batteries.

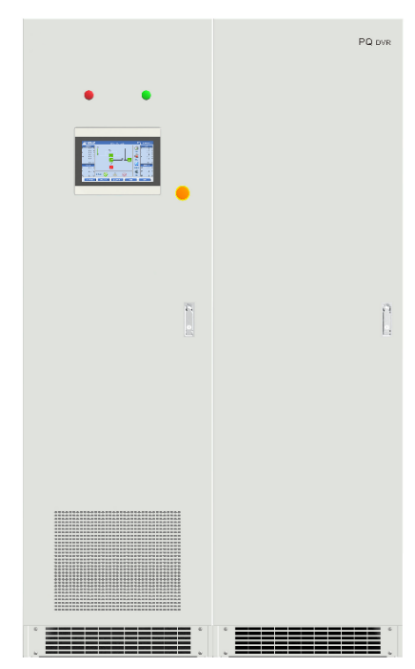

150KVA Dynamic Voltage Regulator(DVR)150KVA Dynamic Voltage Regulator(DVR)

                                                                                                         DVR

150KVA Dynamic Voltage Regulator Features

  • High reliability: Our cabinet applies an integrated design frame, which is highly environmentally adaptable, for it uses less components, and each of them has a powerful anti-shock function and long service life; it also provides a separate air way for cooling, where the air comes in from the bottom and out through the top, effectively preventing dusts from accumulating within the cabinet.

  • Short response time: A global response time of less than 1ms ensures constant power supplying.

  • Excellent charging capability: Our product supports charging energy storage units to their full capacities. Therefore, after a severe voltage sag occurs for the first time, it can rapidly charge the energy storage units that have been discharged. As a result, a problem that the voltage drops continuously in thunder and lightning weather can be effectively addresses.
  • High utilization rate of energy storage units: A wider range of input DC voltages bring more convenience for you to optimize your initial investment.
  • Ease of operation and maintenance: Use of supercapacitors contributes to a long service life and simplicity in maintenance; and our power control products employ a modular design.
  • Intelligent management of energy storage units: We apply an intelligent system for super capacity management, and therefore, can detect in real time when a supercapacitor is working improperly.



150KVA Dynamic Voltage Regulator Technical Parameters

Model

DVR50‒­­­­­150kVA

DVR200­­‒350kVA

DVR400‒450kVA

DVR500kVA or above

System Parameters

Rated voltage

208V, 220V, 380V, 400V, 415V, 460V, 480V

Rated capacity

50kVA, 75kVA, 100kVA, 150kVA

200kVA, 250kVA, 300kVA, 350kVA

400kVA, 450kVA

500kVA or above

Rated frequency

50Hz/60Hz, ±5Hz

Voltage range

-40%‒+20% (You can set this value)

DC voltage

180‒750Vdc (The minimum value can be adjusted as needed.)

Pieces to be integrated

8

Global efficiency

≥99%

Wiring mode

3-phase 3-wire; 3-phase 4-wire

Connection mode

Connect lines from both the top and the bottom

Air in/out

Air in from the bottom and out through the top

Performance Indicators

Overall response time

<1ms

Voltage precision

1%

Sag compensation capability

100%; compensation cycle 3s; for a longer cycle, add a supercapacitor as needed.

Overload capability

Overload 125%, lasts at least 10min; Overload 150%, lasts at least 1min

Cooling mode

Air-cooled

Noise

<68dB

Fixing mode

Cabinet

Dimensions

(W*D*H mm)

600*1000*2000

Power cabinet:

600*1000*2000

Super-capacity cabinet:

600*1000*2000

Power cabinet:

600*1000*2000

Super-capacity cabinet:

800*1000*2000

For a capacity of 500kVA or above, you can adjust as needed.

Environment Parameters

Altitude

≤2000m, 2000m‒4000m (De-rating)

Operating temperature

-10℃‒40℃

Relative humidity

5%RH‒95%RH, non-condensing

Note: For DVR products of other specifications, contact us for further information.
