10 kVA 3 Phase Automatic Voltage Stabilizer

Phase:
Single/Three phase
Input voltage:
220/380V, 230/400V ±20% or customized
Output voltage:
220/380V, 230/400V ±1-5%
Frequency:
50/60Hz
Power factor:
0.8-1
Type of technology:
Servo type with roller carbon brush
Type of regulation:
Independent voltage control
Display:
LED/Touch Screen HMI
Installation:
Indoor/Outdoor
Model NO. DZW/SZW-10KVA lron core shape El
Power source Linear Regulated Power supply Application Range Commercial, Medical&Scientific, Elevator
Brand Modern Special Purpose Use for Home and Elevators
Trademark Modern Transport Package Polywood case
Specification 280x600x750mm Origin China
HS Code 8504401990

Three phase Automatic AC Voltage Stabilizer
AVR Three phase Power Regulator
- SZW/SBW Series 10KVA~2000KVA


One Stabilizer control whole appliances in office

   80AVR AC Automatic Voltage Stabilizer
 Three Phase Voltage Stabilizer for office appliances
also suitable for Elevators



    Compact size and slim body - saving loading space

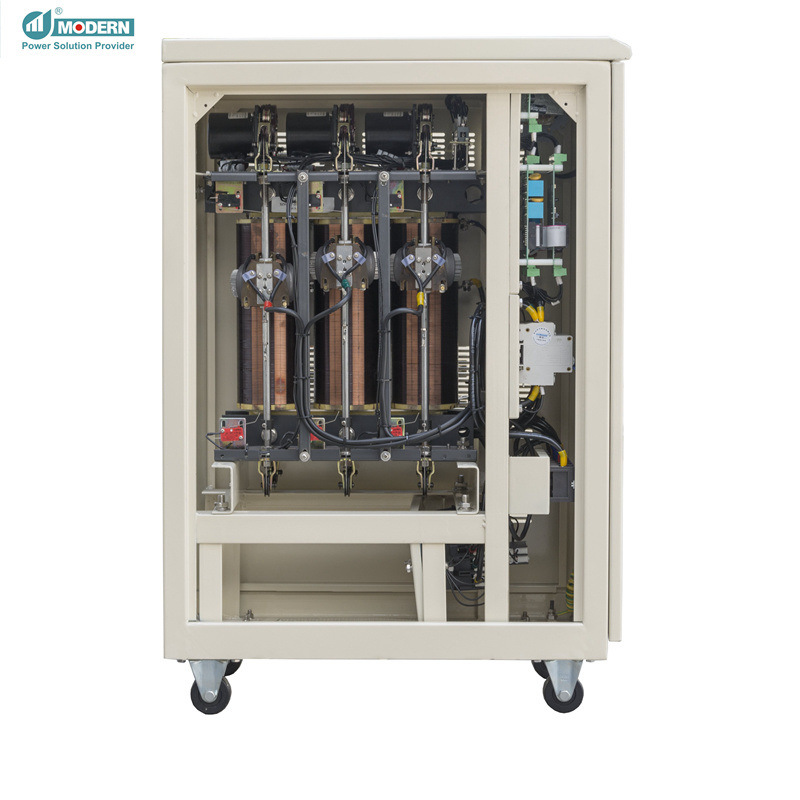

Unique Patent design of carbon brush regulation system

10 kVA 3 Phase Automatic Voltage Stabilizer

10 kVA 3 Phase Automatic Voltage Stabilizer

 Stabilization and Safety means everything !

10 kVA 3 Phase Automatic Voltage Stabilizer

10 kVA 3 Phase Automatic Voltage Stabilizer

10 kVA 3 Phase Automatic Voltage Stabilizer

10 kVA 3 Phase Automatic Voltage Stabilizer

Features and benefits of Automatic voltage stabilizer or voltage regulator :
1. Wide input voltage,or can be customized

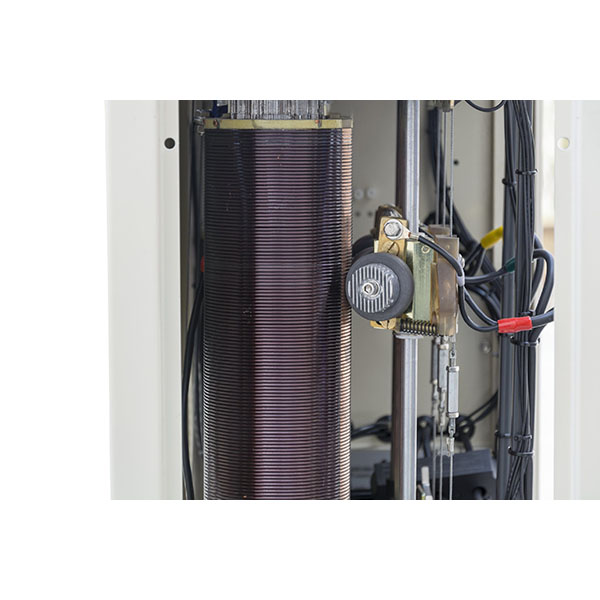

2. Maintenance free roller type carbon brush
3. No additional wave distortion, no phase deviation
4. High Mean Time Between Failure(MTBF)
5. Continually operation mode and withstand to instantaneous overload
6. Protection circuit(over, under voltage and over current auto shutoff after delayed)
7. Manual by-pass function
8. Start output delayed function
9. Unique compact dimension
10.Lightning device addition is available as request
11. Protection for overtemperature,high voltage, low voltage, and against over load 200% for 10sec.
      150% for 60sec.,120% for 10mins.

voltage regulator Applications:
1. Telecom & Broadcast
2. Industrial and Commercial
3. Medical & Scientific
4. Special Equipments, or used as stabilizer for elevators


Regulator / Stabilizer Specification:

Input Voltage DZW SZW
220V(-30%~+10%,-30%~+15%...) 380V (-30%~+10%,-30%~+15%...)
Output Voltage(Preset at 2%) 220Vac ±1~5% 380Vac ±1~5%
Efficiency >=98%(full load)
Precision Selectable:±1%~5%,Factory preset:±2%
Frequancy 50Hz  (±5%)
Method of Voltage Regulation Three Phase Independent Regulation
Response time <0.5s/20V (Line Voltage)
Insulated Strength 2000V/1 Min.without puncture 2500V/1Min. without puncture
Insulated Resistence >2MΩ
Waveform Distortion Nil
Isolated Transformer Optional
Surge Protection Optional
Noise <55dB

FAQ

Equipped with roller carbon brushes, our voltage stabilizers are maintenance free. But yearly ocular (visual) inspections are strongly encouraged. Any electrically trained technician is more than capable of carrying out these simple maintenance tasks – with ease.

Voltage stabilizer with voltage optimisation technology could yield average energy savings of up to 25%.

For more information, please contact us.

Voltage Stabilizer: It is a device or circuit which is designed to deliver constant voltage to the output without in changes in incoming voltage. Voltage Regulator: It is a device or circuit which is designed to deliver constant voltage to the output without in changes in load current.

A voltage stabilizer acts as a protective shield and reduces chances of malfunction. It also helps increase the life of various appliances. Installing a voltage stabilizer is essential to protect expensive electrical appliances such as Air Conditioners, television, refrigerator and computers.
